HG-P320 Real-time PCR system

product description

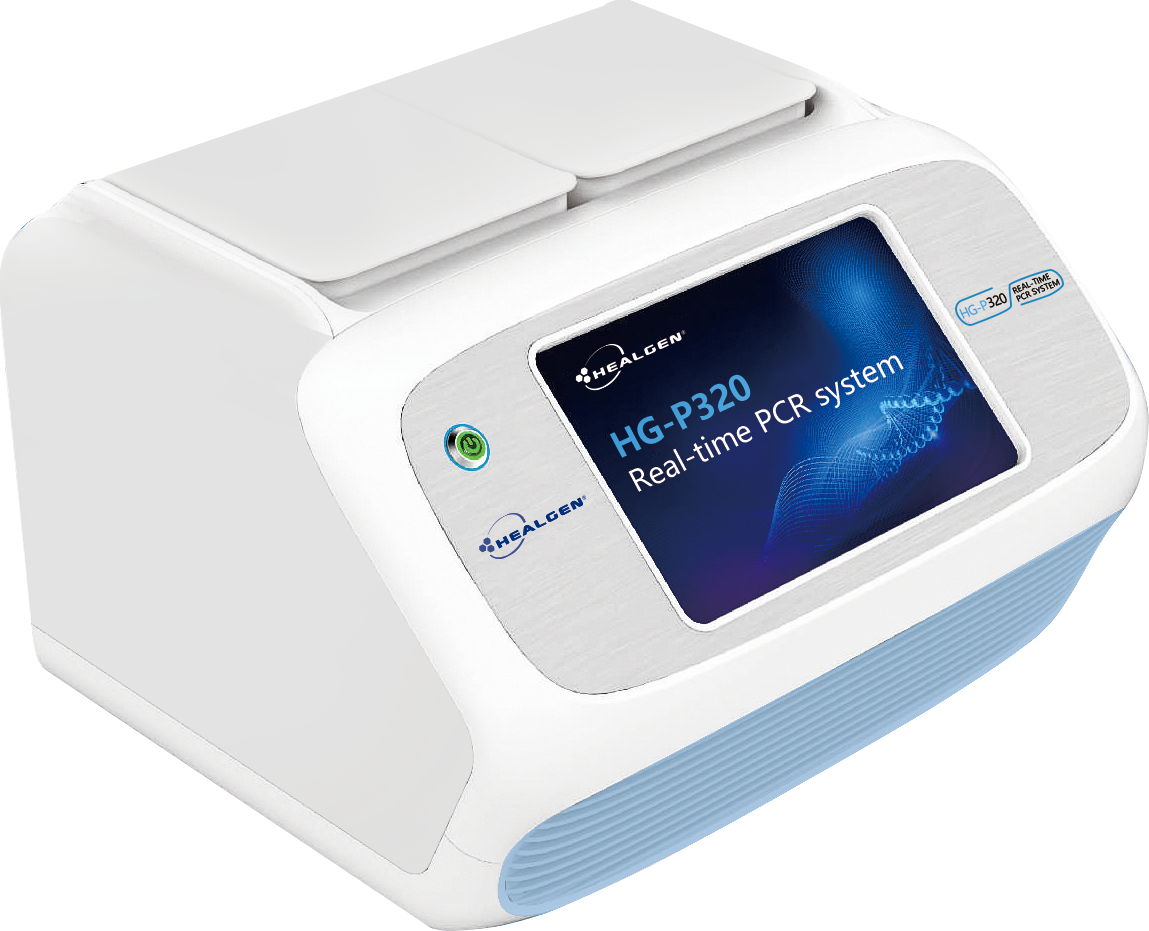

HG-P320 Real-time PCR system is a portable fluorescence quantitative PCR instrument. This product adopts four channels and double 16-well blocks, which can run two different files simultaneously. The product combines a variety of advanced technologies: 7-inch high-definition TFT color touch screen, the win10 operating system with analysis software, complete quantitative analysis, and printing report without a computer. It adopts American Marlow custom-made Peltier, high-sensitivity photoelectric detector, and side scan technology, to ensure superior performance and stable detection results.

Key Features
■ Flexible
Double 16-well block design, two different programs can be run at the same time
■ Powerful
Rich software analysis function, Quantitative Analysis, Melting Curve Analysis, etc.
■ Portable
Small and light weight
■ Easy
inch high intuitive touch screen and Win 10 operating system

Ordering Information

Description	Model	Description	Catalog No.	Qualification
Real-time PCR system	HG-P320	32 samples	MRQP06-E

Parameter

Model	HG-P320 Real-time PCR system
Catalog No.	MRQP06-E
Analysis	qualitative/quantitative/melting curve/ genotyping
Sample Capacity	32×0.2 mL (16 ×2, 2blocks)
Reaction Volume	15-100 μL
Consumable	0.2 mL PCR tubes, 8-tube strips, 48-well plates
Temperature Range	0-100℃
Max Ramp Rate	5℃/s
Temperature Accuracy	±0.1℃
Temperature Uniformity	±0.25℃
Heating and Cooling Method	Peltier
Temperature Control Mode	Tube control/block control
Hot Lid	Adjustable (30-110℃)
Excitation wavelength	300-800 nm
Emission wavelength	500-800 nm
Dyes/Probes	FAM/VIC/ROX/CY5
Size	300267198mm
Weight	8 kg
Frequency	220 VAC, 50Hz
