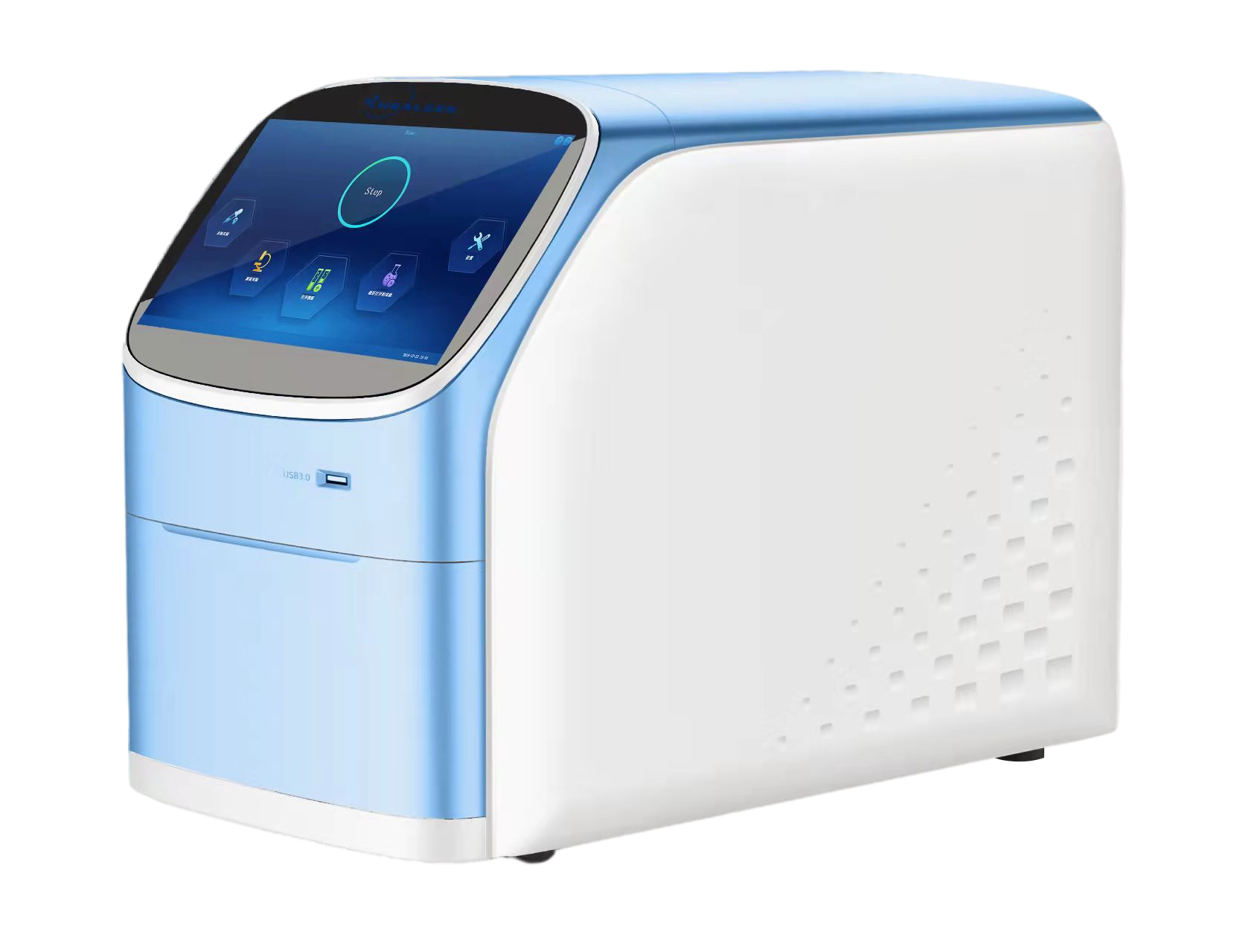

HG-P960 Real-time PCR system

product description

The HG-P960 utilizes very mature thermoelectric refrigeration technology, a new light source, and an optical circuit design. The unique constant current power supply and 6-zone independent temperature control method ensure that the product is fast, accurate, and stable in fluorescence quantitative analysis. The product adopts a modular design, with a variety of configuration options, at the same time, the addition of temperature gradient, sample 4℃cryopreservation, automatic dehumidification, and other functions, fully meets the scientific research and clinical medical needs. Multi-channel fluorescent excitation is transmitted uniformly throughout each of the 96 sample wells for real-time detection of signal amplification via high-temperature resistant optical fibers. The HG-P960 offers fully automatic qualitative PCR capability with a completely open system for flexible experimentation.

Key Features
■ Top imaging photoelectric detection
■ 6 partition thermal cycling module
■ An automatic pop-up sample bin
■ Intelligent adjustable hot cover
■ Full adaptable software system

Ordering Information

Description	Model	Description	Catalog No.	Qualification
Real-time PCR system	HG-P960	96 samples	MRQP04-E

Parameter

Model	HG-P960 Real-time PCR system
Catalog No.	MRQP04-E
Analysis	qualitative/quantitative/melting curve/ genotyping
Sample Capacity	96×0.2ml
Reaction Volume	10-100 μL
Consumable	0.2 mL (single tube, 8-row tube and 96-well plate (no skirt plate, half skirt plate))
Temperature Range	0-100℃
Max Ramp Rate	6.5℃/s
Temperature Accuracy	±0.1℃
Temperature Uniformity	±0.2℃
Temperature Control Mode	Tube control/block control
Hot Lid	Adjustable (30-110℃)
Dyes/Probes	FAM/VIC/ROX/CY5
Size	490290391mm
Weight	28 kg
Frequency	100-240VAC, 50/60Hz
